POPU Valve: Forged Steel Welded/Threaded Globe Valve
| Name | Body | Seat | Disc | Pressure |
| Optional | A105/F11/F304/ F316/F316L | SS/Hard alloy | A105/304/316/316L | PN16-PN420/Class150-2500 |

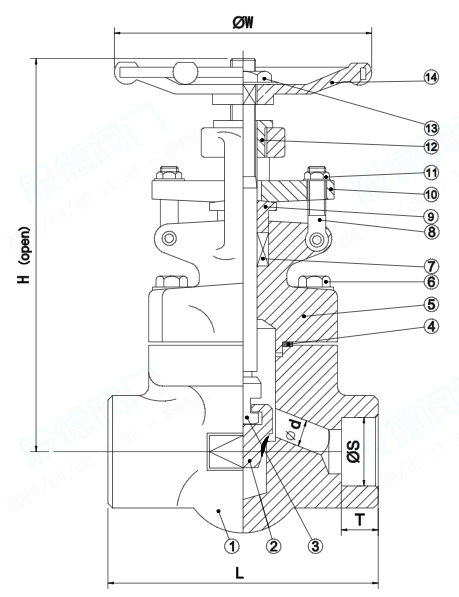

| DN | NPS（Inch） | L | Φd | H | ΦS | T |
| 15 | 1/2'' | 79 | 10.5 | 155 | 21.8 | 10 |
| 20 | 3/4'' | 92 | 13 | 157 | 27.1 | 13 |
| 25 | 1'' | 111 | 18 | 186 | 33.9 | 13 |
| 32 | 1 1/4'' | 120 | 23 | 220 | 42.7 | 13 |
| 40 | 1 1/2'' | 120 | 28 | 246 | 48.8 | 13 |
| 50 | 2'' | 140 | 36 | 286 | 61.1 | 15 |
1. The material is made of high-quality forged steel, and the chemical composition and mechanical properties meet national standards. Material reports can be provided.
2. The internal parts are processed by CNC machine tools, with precise matching, interchangeable parts, and smooth and beautiful appearance.
3. The sealing surface is plasma surfacing to increase the wear resistance of the valve, and the hardness meets national standards.
4. The cleanliness of the inner cavity meets the JB/T7748 standard and meets the long-term storage requirements of the valve.
5. Each valve is subjected to double-layer pressure testing of the shell and seal in accordance with national standards before leaving the factory.
