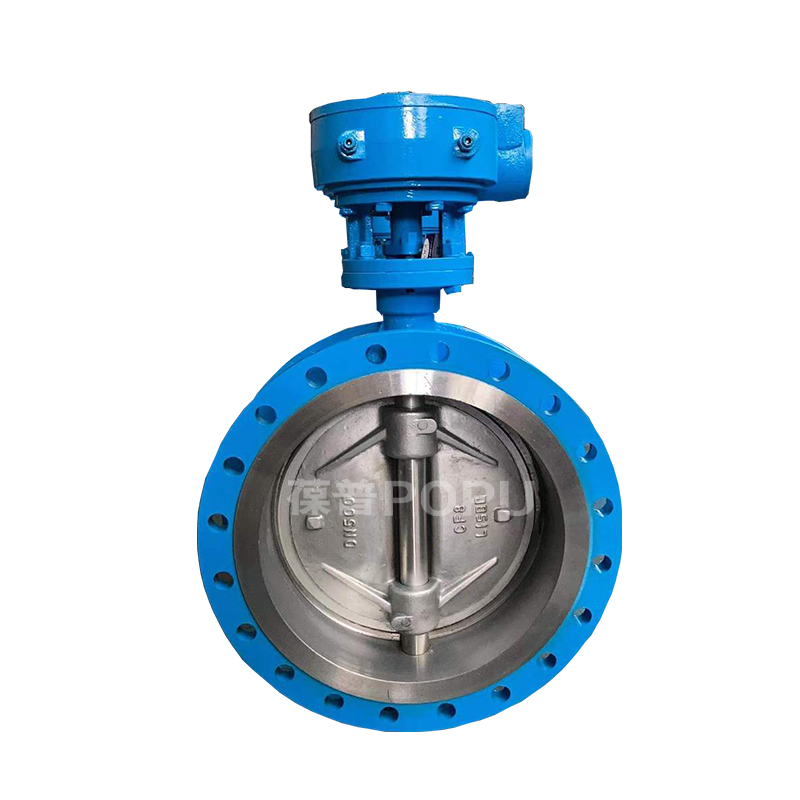

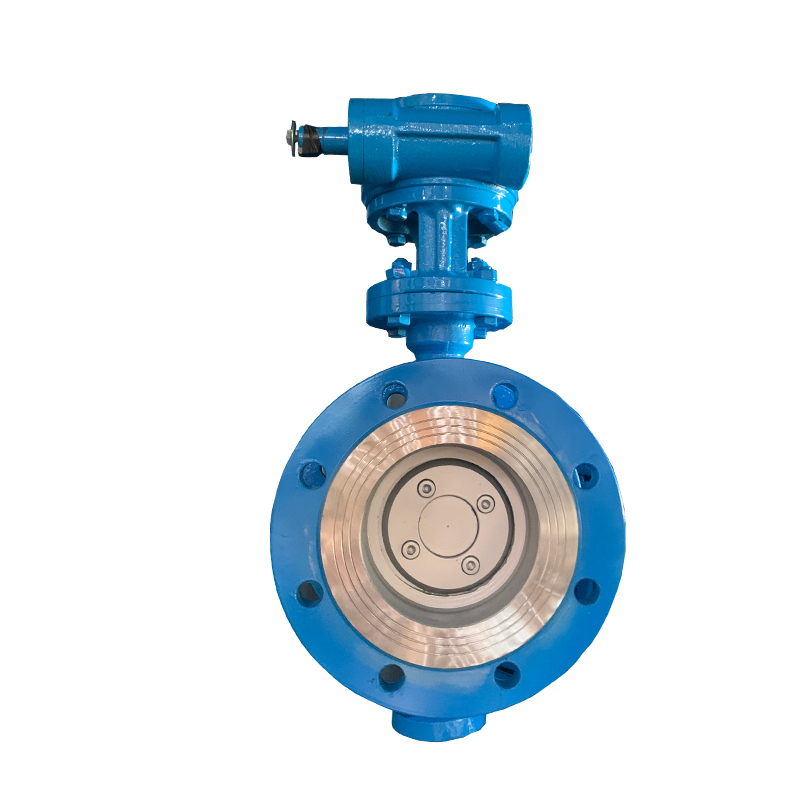

D343H-16C hard seal flange butterfly valve (also known as multi-level hard seal butterfly valve) is a long-life, energy-saving butterfly valve product. The product performance is at the leading level at home and abroad, high temperature and corrosion resistance, widely used in industrial pipelines such as power, petroleum, chemical, metallurgy, municipal construction, etc. to cut off or adjust the flow of media. This product adopts the three-dimensional eccentric principle design, and the valve seat adopts a multi-level structure compatible with hard and soft seals, with exquisite processing and advanced technology.

Parameters

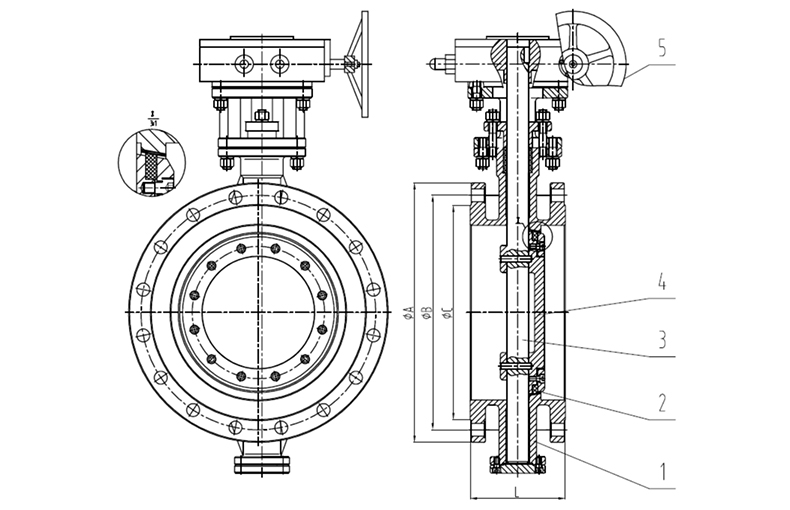

SIZE		LENGTH	PN10			PN16
DN	NPS	L	ΦA	ΦB	ΦC	ΦA	ΦB	ΦC
50	2''	108	165	125	102	165	125	102
65	2 1/2''	112	185	145	122	185	145	122
80	3''	114	200	160	138	200	160	138
100	4''	127	220	180	158	220	180	158
125	5''	140	250	210	188	250	210	188
150	6''	140	285	240	212	285	240	212
200	8''	152	340	295	268	340	295	268
250	10''	165	395	350	320	405	355	320
300	12''	178	445	400	370	460	410	378
350	14''	190	505	460	430	520	470	438
400	16''	216	565	515	482	580	525	490
450	18''	222	615	565	532	640	585	550
500	20''	229	670	620	585	715	650	610
600	24''	267	780	725	685	840	770	725
700	28''	292	895	840	800	910	840	795
800	32''	318	1015	950	905	1025	950	900
900	36''	330	1115	1050	1005	1125	1050	1000
1000	40''	410	1230	1160	1110	1255	1170	1115
1200	48''	470	1455	1380	1330	1485	1390	1330
1400	56''	530	1675	1590	1535	1685	1590	1530

Advantages

1. All valve bodies are precision cast valve bodies, with WCB-compliant materials, fine appearance, no sand holes, and furnace number marks on each batch of castings, which facilitates production tracking and ensures material inspection

2. The valve body is made of ZG250-485 material that meets national standards. It undergoes 15 processes from raw iron to valve body molding.

3. The butterfly plate is processed by CNC lathe, and the sealing ring is a soft and hard multi-layer stacked metal ring, which has the dual advantages of metal and elastic sealing, ensuring excellent sealing performance in high and low temperature environments

4. The valve stem is made of stainless steel, and the strength of the valve stem is doubled after quenching and tempering, reducing the opening and closing and leakage problems caused by valve stem deformation

5. After the product is produced, each product is painted three times with lead-free paint for primer and topcoat to ensure the brightness and corrosion resistance of the product appearance

6. After the product is pressed and debugged, the turbine adjustment screw is processed again, and the left and right lengths are adjusted to be consistent before shipment. The turbine adjustment screw of each product is equipped with a protective nut to protect the adjustment screw from damage

7. The valve plate is thick, the valve stem is thick, the pin is thick, and the valve seat is finely processed, flat, and has no welding scars.

8. Quality inspection at every link from the rough to the finished product packaging and factory delivery
